Product Details
Place of Origin: Vietnam
Brand Name: Lan Anh Silicone
Certification: FDA， ROHS, SGS, UL
Model Number: TMS25L
Payment & Shipping Terms
Minimum Order Quantity: 5000pcs
Price: Quote as per inquiry.
Packaging Details: PE inside , Carton Outside, Carons on pallets if needed
Delivery Time: 5-25days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30000000PCS / Month
Color: |
Multi Color, As Per Customer's Requirement. |
Material: |
Food Grade Silicone Rubber |
Application: |
Storage Utensile, Bushing |
Keywords: |
Rubber Sealing Ring, Bushing |
Custom: |
OEM Or ODM |
Size: |
Custom Size |
Color: |
Multi Color, As Per Customer's Requirement. |
Material: |
Food Grade Silicone Rubber |
Application: |
Storage Utensile, Bushing |
Keywords: |
Rubber Sealing Ring, Bushing |
Custom: |
OEM Or ODM |
Size: |
Custom Size |

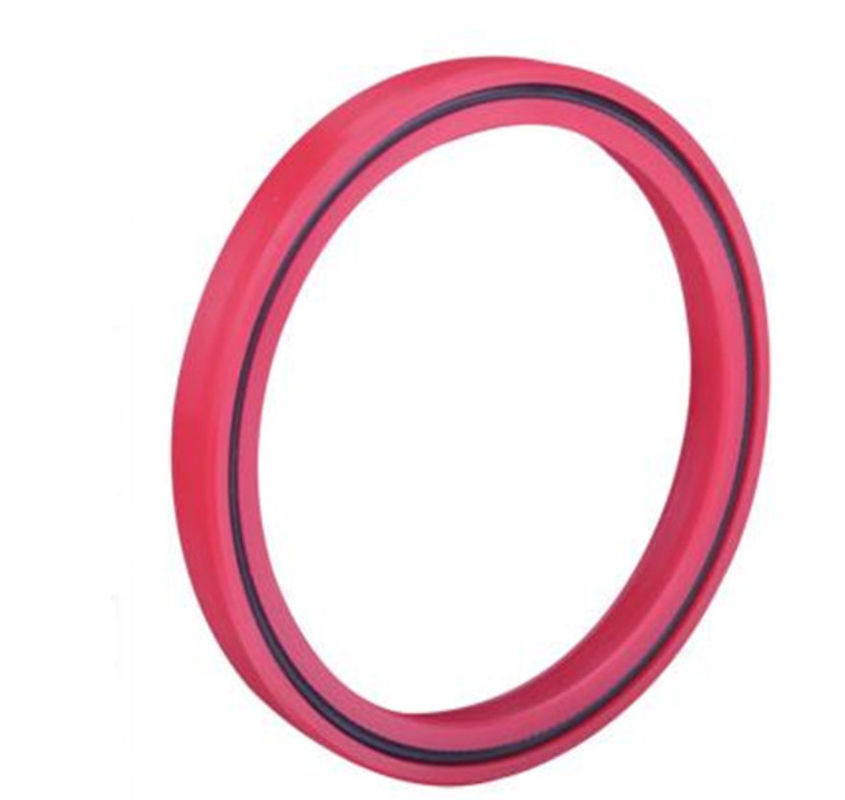

TMS25L Piston Rod Seal Custom Silicone Rubber Parts EPDM Rubber O-Ring
Feature of TMS25L
Tensile strength: ≤50MPa
Working temperature: -20~100Celsius
Maximum sliding speed: 0.4m/s
Working medium: emulsion, water, hydraulic oil
The TMS25L piston rod seal is a one-way seal. In addition to the basic characteristics of YS and UB, another special O-ring on the lip makes it have more excellent sealing performance at low pressure, and can be used under system pressure. Under the action, the energy is multiplied and an extremely steep contact pressure gradient is formed, so it has more reliable sealing.
| Material | Feature | Temperature range |
| EPDM | Excellent weatherability, good high and low temperature resistance, low gas permeability. Resistant to ozone, steam, water, alcohols, brake fluids. Poor resistance to petroleum oils, diester lubricants. | -60°F to 280°F |
| Neoprene | Good general purpose elastomer, with moderate oil, ozone and water resistance. Resistant to freons, high aniline points oils, mild acids. Not recommended for phosphate esters, ketones, brake fluids. | -65°F to 260°F |
| Nitrile | Excellent resistance to petroleum products, excellent compression set; resistant to oil, water, silicone greases and oils. Not recommended for halogenated hydrocarbons, ketones, ozone and sunlight. | -65°F to 275°F |
| SBR | General purpose elastomer, good adhesion to various substrates, good abrasion resistance, good resiliince. Resistant to brake fluids, alcohols, water. Not recommended for solvents, oil/gas, sunlight. | -65°F to 225°F |
| Silicone | Best overall temperature range of elastomers currently available. Excellent resistance to dry heat, as well as, resistance to low temperature, brake fluids, high aniline point oils. Not recommended for some dynamic applications due to poor tensile strength and tear. Poor in petroleum oils and ketones. | -150° to 500°F |
| FKM | Outstanding resistance to the effects of heat, chemicals, and solvents. FKM® has good tensile, resistance and low compression set. Limitations include poor low-temperature properties, limited hot-water resistance and shrinkage. | -50° to 600°F |
Packing
PE inside , Carton Outside, Carons on pallets if needed
Our products applications
| Application |
Rice Cooker, Induction Cooker, Pressure Cooker, Water Heater, Vacuum Cleaner, Juicer, Lid Gasket, Kettle, Thermos Bottle, Thermos Cup, Irons, Microwaves, Water dispensers. Pacemakers, Stents, Respiratory masks, and Feeding tubes. Circuits, connectors, and tubes Heat-resistant engine seals, Rubber hoses, Electronics and Cable Insulation, Steering wheels, Dashboards, Bumpers and a variety of plastic body parts, Motor blocks, Gear boxes, Alternators, Water pumps and other mechanical parts, etc |
| Industries |
Electrical Equipment, Electronics, Food Processing, kitchenware, cookware, tableware Electrical appliance, Automotive Electrical Enclosure, Outdoor Electrical, Outdoor Cellular Telecommunications, Water Purification Systems, Medical Equipment, Dairy Fluid Handling |
| Products | Washers & Seals, Connector seals, Coasters, Weather seals, Enclosures, Customization, Toys, Holders... |
Production Processing
1. If we have stock of MATERIAL, we would start production soon, say 5days.
While, if the material is out of stock, we may need about 25 days to stock the material(QC works throughout the whole production process).
2. Make the MOLD according to the project(QC).
3. Add the VULCANIZING AGENT.
4. MIX the silicone rubber and adjust the COLOR to match it as per customer required(QC)
5. CUT the vulcanized material into slices according to the mold.
5. Put the material into the machine, VULCANIZATION & SHAPING(QC).
6. When the products ready, the workers will do TRIMMING.
7. We will print the customed LOGO if required.
8. QC and CLEAN before packing.
9. PACKING, Usually, PE inside , Carton Outside, Carons on pallets if needed.
10. Products be transfered to the WAREHOUSE to be delivered.
11. LOADING & SHIPPING
Material Reservation ► QC ► Vulcanizing Agent ► QC ► Mixing & Color ► QC ► Cutting ► Vulcanization & Shaping ► QC ► Triming ► QC ► Packing► Ready ► Loading & Shipping
About Lan Anh Silicone
Lan Anh offers engineering services from initial part analysis to final delivery. With an onsite tool shop,
we can provide prototypes quickly and economically. From your drawing, 3D model or sample parts,
our engineers can review the manufacturability of the part and recommend changes that will reduce
costs without compromising performance. Our research and development (R&D) laboratory can
recommend materials suited for your application and offer testing methods and services you may
need to prove performance characteristics.
Our Vision: To be the pioneer of silicone products in the Asia-Pacific region.
Our core values: provide employees with the most comfortable working environment, fulfill corporate
responsibilities, meet customer needs and build a high-quality, professional team.
Our business philosophy: sincerity and pragmatism, gratitude and return, equality and mutual benefit.
Quality control
The molded silicone products have uniform hardness and softness, qualified stretching and rebounding strength, and good rebounding effect.
Owing to above points, we e can save time and cost to the greatest extent, reduce product scrap rate and maximize the rational use of raw materials, which support us to provide our products at best price on right time.
Certificates
Order Processing FYI
1. First, send the Inquiry with 3D drawing or sample to us, and tell us the hardness and Tensile strength required, as more detaill as better.
2. We will analysis the inquiry, and offer the quotation.
3. Buyers accept the quotation, confirm the trial order of sampling, and make payment.
4. We will do sampleing and test, and send the sample or test report to customer.
5. Sample confirmed, buyers place the bulk order.
6. We send the official PI for confirmation.
7. Buyers make the payment, and send the payment proof to us.
8. After the payment received, we will arrange the production.
9. We will notice the buyers when products is about to ready, and book the inspection time with customers, or we show pictures for confirmation.
10. As soon as the inspection passed, we will arrange delivery according to the items we both agreed with the buyers.easy FYI
Inquiry (3D drawing or sample) ► Analysis & Quotation ► Trial Order & Payment ► Sampling & Test ►Sample Confirmation ► Bulk Order ► PI Confirmation ► Payment ► Production ► Inspection ► Delivery
